Shandong Sino Steel Co., Ltd.
Roll Fomig Machine

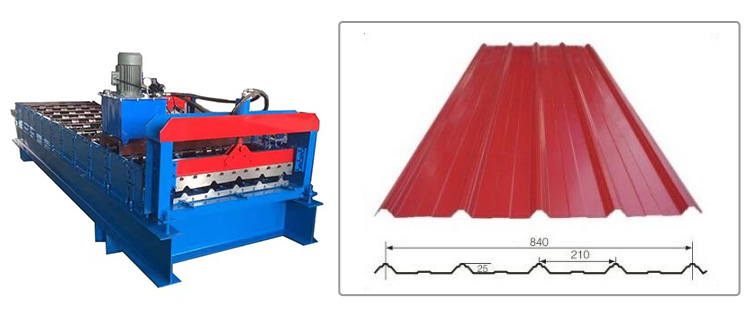

SINO-840 single deck roll forming machine

  • Port:

    Qingdao, China

  • Transport Package:

    Customized

  • Payment Terms:

    L/C, T/T

  • Tile Type:

    Steel coil

  • Certification:

    CE, ISO

  • Condition:

    New

  • Customized:

    Customized

  • Usage:

    Roof, Wall, Floor

  • Transmission Method:

    Hydraulic Pressure

Contact Now

No.

Item

Spec

Unit

1.

Machine Type

840 TRAPEZOIDAL  FORMING MACHINE



2.

Structure

300H Steel Welding



3.

Middle Plate Thickness

14

mm

4.

Raw material

PPGI



5.

Feeding width

1000

mm

6.

Effective width

840

mm

7.

Thickness

0.2-0.8

mm

8.

Yield strength

350mpa

Mpa

9.

Working speed

12-15(without cutting speed)

m/min

10.

Roller QTY

11

step

11.

Roller material

45# steel ,finishing machining

and plating hard chrome on surface.HRC58-62°



12.

Main Shaft material

45# high quality steel,

quenching treatment



13.

Main Shaft

Diameter:¢70 Solid Shaft

mm

14.

Chain

1

inch

15.

Main Motor Power

3

kw

16.

Hydraulic Pump Station Power

3

kw

17.

Hydraulic pressure

12

Mpa

18.

Voltage

According to the customer requirement



19.

Blade material

Cr12 quenching treatment



20.

Electric System

Control panel



21.

Cutting mode

Hydraulic cutting,cutting after forming



22.

Color

Can as your requirement.



23.

Container

1*20GP
